Seismic Tomography Surveys in Phoenix (Refraction & Reflection)

The most expensive mistake we see on Phoenix job sites is designing foundations without knowing what lies between ten and forty feet below the surface. Caliche layers vary wildly across the Valley—solid as concrete in one parcel, riddled with dissolution voids in the next. Standard borings give you data at discrete points, but seismic tomography fills in the gaps, producing a continuous velocity profile that reveals hidden transitions, fracture zones, and the true depth to competent bearing material. When a high-rise in Midtown hit unexpected pinnacles during excavation, it was a missing tomography line that would have flagged the anomaly weeks earlier. We run both refraction and reflection surveys depending on target depth, and our field crew understands that Phoenix ambient noise—freeway traffic on the I-10, light rail vibrations—demands careful signal stacking to keep data clean.

A single seismic tomography line across your site can reveal what a grid of six borings cannot: the continuous geometry of the subsurface.

Methodology and scope

Phoenix grew outward fast after air conditioning made the desert livable, and much of that expansion happened across basin-fill deposits with no uniform geotechnical signature. The 1950s subdivisions north of Camelback Road sit on coarse alluvial fans with high seismic velocity contrasts, while areas near the Salt River channel hide pockets of unconsolidated silts that slow shear-wave propagation dramatically. Our MASW surveys often pair with tomography here because the velocity profiles complement each other—MASW gives us shear-wave data for site class determination per IBC, and refraction tomography nails compressional-wave stratigraphy for rippability and excavation planning. For deeper targets below 100 feet, we switch to reflection methods, which resolve basin geometry and fault offsets that affect both liquefaction potential and long-term settlement behavior. The transition from upper cemented gravels to underlying playa clays is rarely a clean horizontal contact, and only continuous imaging catches the undulations that discrete boreholes miss.

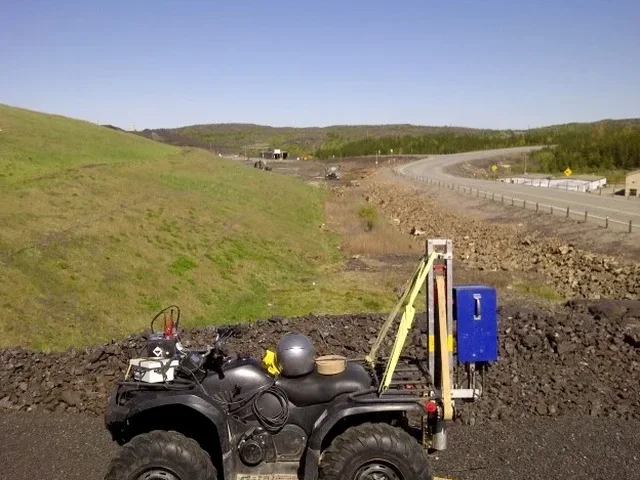

Seismic Tomography Surveys in Phoenix (Refraction & Reflection)

Local ground factors

The geotechnical contrast between Arcadia and the West Valley tells the story. Arcadia's citrus-grove soils sit on old river terrace deposits—dense, well-graded, and predictable. Move west toward the Loop 303 corridor and you encounter basin-center sediments with interbedded clays and evaporite horizons that dissolve unevenly over time. A warehouse slab designed with uniform bearing assumptions can experience differential settlement exceeding an inch within five years if caliche dissolution cavities go undetected. Seismic tomography maps these velocity anomalies before a single footing is poured. We also use it to verify that stone columns or other ground improvement have achieved specified density targets across the full treatment zone, not just at test locations. The Arizona Geological Survey has documented subsidence features throughout the West Valley, and our velocity profiles routinely identify low-velocity zones that correlate with buried collapse structures invisible from the surface.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.sbs

Applicable standards

IBC 2021 Chapter 16 (Site Class Determination via Vs30), ASCE/SEI 7-22 Section 20 (Site Classification Procedure), ASTM D5777-18 (Standard Guide for Seismic Refraction Method), ASTM D7128-18 (Standard Guide for Seismic Reflection Method)

Related services

01

Seismic Refraction Tomography

Ideal for depths up to 100 feet. We deploy 24- or 48-channel arrays with tight geophone spacing to map rippability, bedrock topography, and caliche continuity. Inversion processing yields 2D P-wave velocity cross sections used directly by excavation contractors and foundation engineers.

02

Seismic Reflection Profiling

Applied when targets exceed 100 feet depth—basin geometry, fault mapping, deep paleochannel delineation. We use common-midpoint stacking to enhance signal in Phoenix's noisy urban corridors, delivering interpreted sections tied to available borehole control.

Typical parameters

ParameterTypical value
MethodRefraction (P-wave) and Reflection (P/S-wave)
Typical Investigation DepthRefraction: 0–100 ft; Reflection: 50–500+ ft
Geophone Spacing5 to 20 ft depending on target resolution
Energy SourceAccelerated weight drop or sledgehammer on plate
Data FormatSEG-2 standard; delivered as 2D velocity profiles
IBC Site Class DeterminationVs30 computed from combined MASW + refraction data
Common Phoenix TargetsCaliche continuity, bedrock pinnacles, paleochannel mapping

Questions and answers

What does a seismic tomography survey cost for a typical Phoenix commercial lot?

For a standard commercial lot survey with one or two refraction lines, budgets in the Phoenix area typically fall between US$2,370 and US$5,960. Final cost depends on line length, number of geophone spreads, and whether reflection profiling is required for deeper targets.

How does refraction tomography differ from a standard seismic refraction survey?

Standard refraction assumes layered, planar interfaces and uses simple intercept-time interpretation. Tomography divides the subsurface into a grid of small cells and uses iterative inversion to produce a continuous velocity model. It handles lateral velocity gradients, dipping layers, and irregular bedrock surfaces far better than the classical method.

Can you run seismic lines on asphalt or concrete pavement?

Yes. We use baseplate-coupled geophones that plant directly on hard surfaces without drilling. Coupling is verified by comparing waveform amplitude and frequency content against nearby soil-planted stations. Phoenix parking lots and warehouse slabs are routine survey surfaces for us.

How long does data acquisition and processing take?

Field acquisition for a single refraction line typically completes in one day. Raw data goes through first-break picking and tomographic inversion, with preliminary velocity profiles delivered within three to five business days. Reflection processing takes longer—factor seven to ten working days for a stacked and migrated section.
